115 Ton Gantry Crane - $200,000 (Chilliwack)
43676 Progress Way
condition:
good
engine hours (total):
9037
make / manufacturer:
Paolo de Nicola
model name / number:
TE115
size / dimensions:
26.24' x 42.65' x 39.37'
QR Code Link to This Post

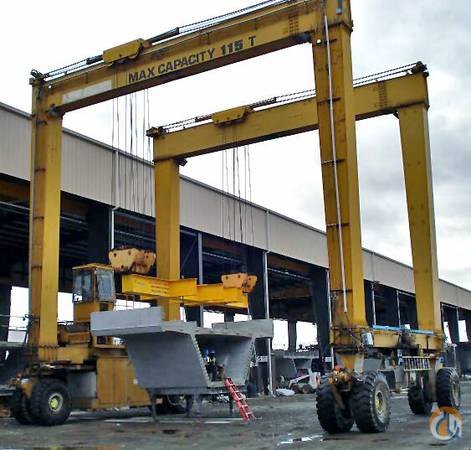

Make: Paolo de Nicola
Model: TE115
Year: 1996
Run Hours: 9,037
Designed for 115T capacity, but currently certified for 57.5T capacity. 115T certification can be achieved with full load test.

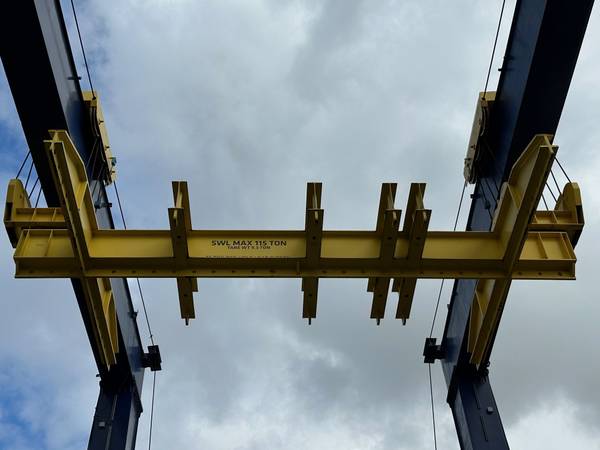

115T Custom Built Multi-Point Spreader Bar (P.Eng Structural Design)
4 Wheel steering/Crab Walk Function
Full Functionality Test Completed April, 2025
New Starter Battery February, 2025
Dimensions: 8,000mm(26.24') Long x 13,800mm(42.65') Wide x 12,000mm(39.37') High
Maximum Inclination: 5%
Line Speed/Load: 0-6 m/l
Lifting Travel: 9,000mm
Directional Speed of Trolleys m/min 0-12 m/l
More details available upon request
Crane was originally yellow, but was repainted blue in 2015
Asking $200,000
Please e-mail, text, or call Paul @ show contact info
